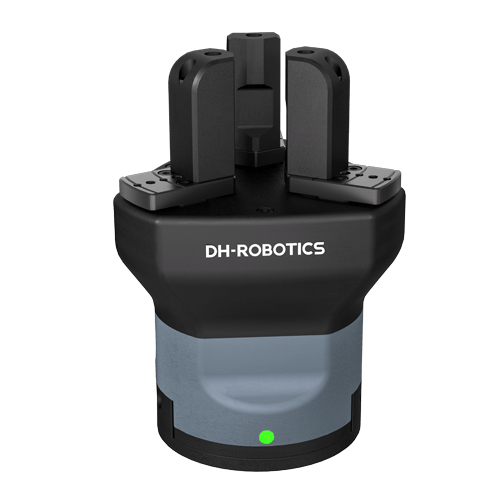

CG Series
The CG series three-finger centric electric gripper independently developed by DH-Robotics is a great soultion to grip cylindrical workpiece. The CG series is available in a variety of models for a variety of scenarios, stroke and end devices.
Products Features
High performance
Realize high-precision centering and grasping, the process structure meets the requirements of high rigidity, and the energy density exceeds that of similar products.
Long Lifetime
Continuous and stable work above 10 millions times without maintenance.
Overload protection
The high-performance servo motor can provide instantaneous overload protection.
| More Features
- Integrated design
- Adjustable parameters
- Replaceable Fingertip
- Self-locking
- Intelligent feedback
- IP67
- IP40
- CE certification
- FCC certification
- RoHS certification
Product Parameters
| CGE-10-10 | CGC-80-10 | CGI-100-170 | ||
|---|---|---|---|---|
| Gripping force (per jaw) | 3~10 N | 20~80 N | 30~100 N | |
| Stroke | 10 mm | 10 mm | \ | |
| Recommended gripping diameter | \ | φ40~φ170 mm | ||
| Recommended workpiece weight | 0.1 kg | 1.5 kg | ||
| Opening/Closing time | 0.3 s/0.3 s | 0.2 s/0.2 s | 0.5 s/0.5 s | |
| Repeat accuracy (position) | ± 0.03 mm | |||
| Noise emission | < 50 dB | |||
| Weight | 1 kg | 1.5 kg | ||
| Driving method | Rack and pinion + Linear guide | Pinion | ||
| Size | 94 mm x 53.5 mm x 38 mm | 141 mm x 103 mm x 75 mm | 156.5 mm x 124.35 mm x 116 mm | |
| Communication interface | Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT | |||
| Rated voltage | 24 V DC ± 10% | |||
| Rated current | 0.3 A | 0.4 A | ||
| Peak current | 0.6 A | 1 A | ||
| IP class | IP 67 | IP 40 | ||
| Recommended environment | 0~40°C, under 85% RH | |||
| Certification | CE，FCC，RoHS | |||
