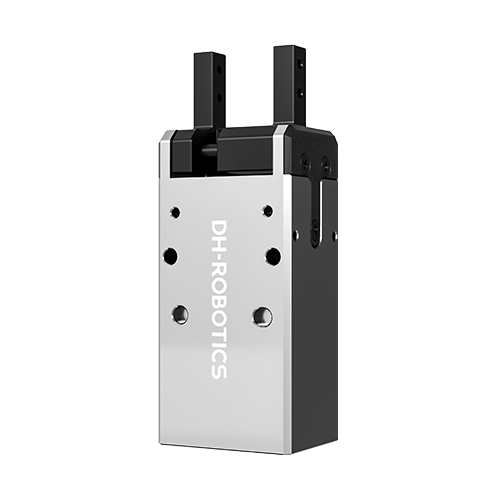

DH Robotics PGS Series

Miniature Electro-magnetic Gripper

Get In Touch  Download Spec Sheet

PGS Series

The PGS series is a miniature electromagnetic gripper with high working frequency. Based on a split design, the PGS series could be applied in space-limited environment with the ultimate compact size and simple configuration.

Products Features

Small Size

Compact size with 20×26 mm, it can be deployed in a relatively small environment.

High Frequency

The opening/closing time could reach 0.03s to meet the needs of fast grasping.

Easy to Use

The configuration is simple with the Digital I/O communication protocol.

| More Features

  • Integrated design
  • Adjustable parameters
  • Replaceable Fingertip
  • IP40
  • CE certification
  • FCC certification
  • RoHs certification
  • RoHs certification


Product Parameters

Gripping force (per jaw) 3.5-5 N
Stroke 5 mm
Recommended workpiece weight 0.05 kg
Opening/Closing time 0.03 s /0.03 s
Repeat accuracy (position) ± 0.01 mm
Noise emission < 60 dB
Weight 0.2 kg
Driving method Electromagnet + Spring
Size 68.5 mm x 26 mm x 20 mm
Communication interface Digital I/O
Rated voltage 24 V DC ± 10%
Rated current 0.5 A
Peak current 3 A
IP class IP 40
Recommended environment 0~40°C, under 85% RH
Certification CE,FCC,RoHS
