CR12 Collaborative Robot
The CR12 has a maximum payload of 12 kg and max operating speed of 4 m/s. The robot can be deployed for loading and unloading, polishing, welding and palletizing tasks to improve production efficiency in automotive, food and beverage, pharmaceutical and chemical industries.
Application Scenario
Gluing
Loading & Unloading
Polishing

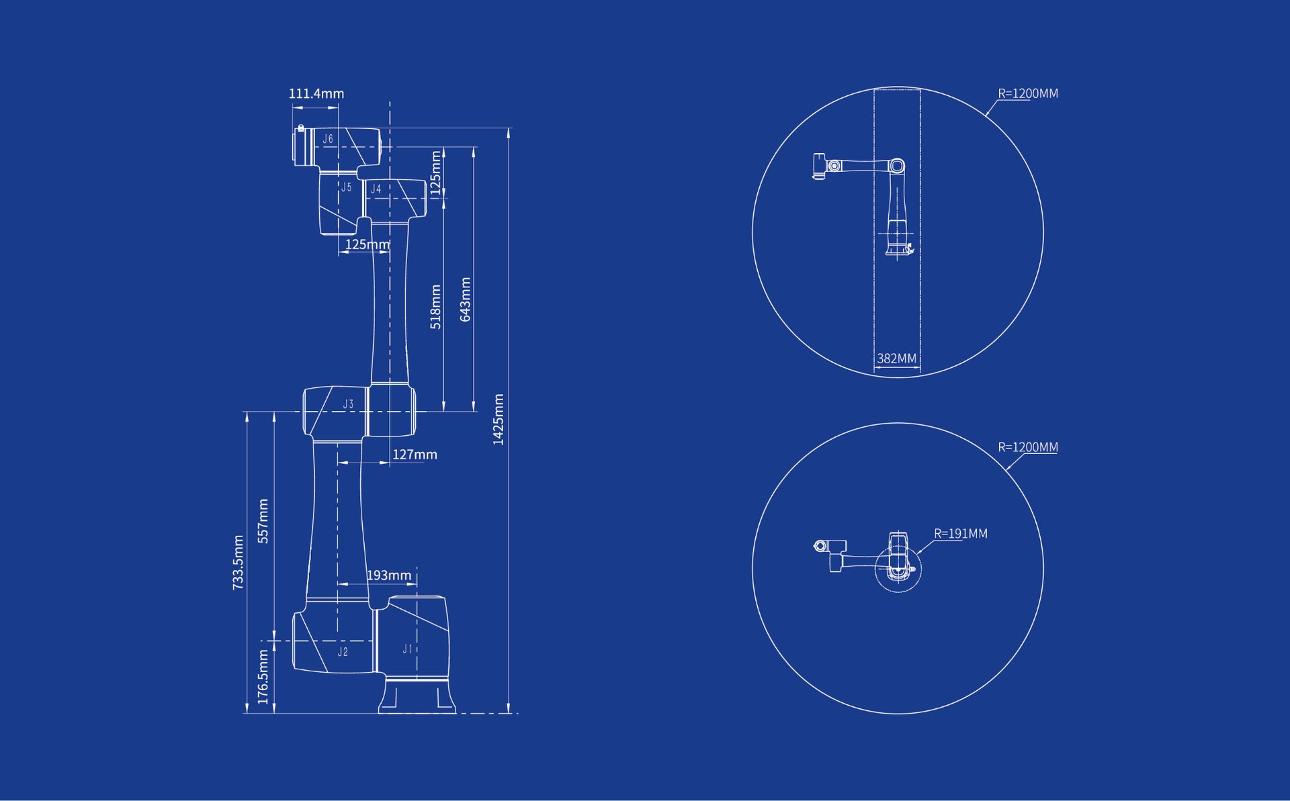

Working Range
Specs
| Weight | 39.5 kg | |
| Maximum Payload | 12 kg | |
| Working Radius | 1200 mm | |
| Maximum Reach | 1425 mm | |
| Rated Voltage | DC48V | |
| Maximum Speed of TCP | 4 m/s | |
| Range of Motion | J1 | ±360° |
| J2 | ±360° | |
| J3 | ±160° | |
| J4 | ±360° | |
| J5 | ±360° | |
| J6 | ±360° | |
| Maximum Joint Speed | J1/J2 | 120°/s |
| J3/J4/J5/J6 | 180°/s | |
| End-Effector I/O Interface | DI/DO/AI | 2 |
| AO | 0 | |
| Communication Interface | Communication | RS485 |
| Controller I/O | DI | 16 |
| DO/DI | 16 | |
| AI/AO | 2 | |
| ABZ Incremental Encoder | 1 | |
| Repeatability | ±0.03 mm | |
| Communication | TCP/IP, Modbus, Wi-Fi | |
| IP Rating | IP54, Control Box IP20 (IP66 available upon choice) | |
| Temperature | 0° ～ 45° C | |
| Power Consumption | 350W | |
| Materials | Aluminum alloy, ABS plastic | |
